GTM Overview

There are many possible configurations

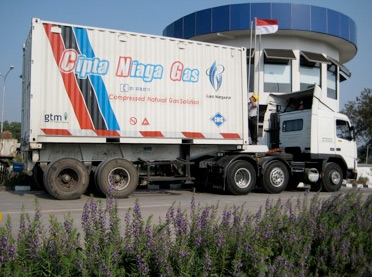

They all have a 15.9 inch (40.4 mm) diameter and can be configured in rows across of up to 6 cylinders. A 10' ISO shipping container would use the 108 inch (274 cm) long cylinder in 5 cylinders across by 6 cylinders high (or 5x6). A 20 foot container would be 5x6x2. A small truck, however, may use the 120 inch (305 mm) long tube in a 4x3 or 4x4 configuration.

In the United States, GTM can manufacture a system with cylinders approved for use under Special Permit 15136 by the US Dept. of Transportation. Further, GTM uses cylinders that meet the requirements of ANSI/CSA NGV 2, US DOT FMVSS 304, CAN/CSA B51, TC 301.2, METI-KHK, ISO 11439 and ECE R110. The cylinders have also been approved for storage and transportation of CNG in Australia and Japan, and the approval process is currently under way in Indonesia.

So pick your location, your mode of transportation and packaging interest, and we can make the GTM suitable for your application.
